What is the virtual DOM in React?

What is the React DOM?

To understand the virtual DOM and learn why React implements it, let’s first refresh our knowledge of what the actual browser DOM is.

Normally, whenever a user requests a webpage, the browser receives an HTML document for that page from the server. The browser then constructs a logical, tree-like structure from the HTML to show the user the requested page in the client.

This tree-like structure is called the Document Object Model, also known as the DOM. It is a structural representation of the web document as nodes and objects, in this case, an HTML document.

The DOM serves as an interface for the web document so that JavaScript and other scripting languages can access, manipulate, and programmatically interact with the document’s content. For example, developers can use DOM APIs to add or remove elements, modify their appearance, and perform user actions on web elements.

How re-rendering impacts performance

DOM operations are very fast, light operations. However, when the app data changes and triggers an update, re-rendering can be expensive.

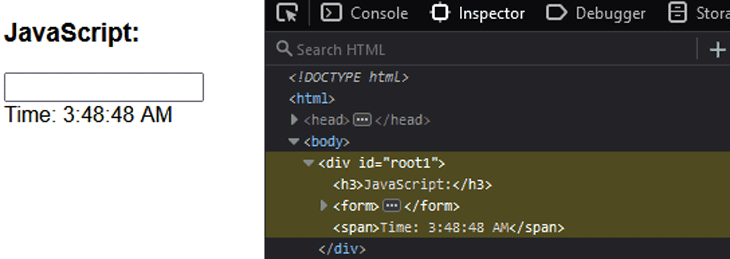

Let’s simulate re-rendering a page with the JavaScript code below:

const update = () => {
 const element = `
  <h3>JavaScript:</h3>
  <form>
   <input type="text"/>
  </form>
  <span>Time: ${new Date().toLocaleTimeString()}</span>
 `;

 document.getElementById("root1").innerHTML = element;
};

setInterval(update, 1000);

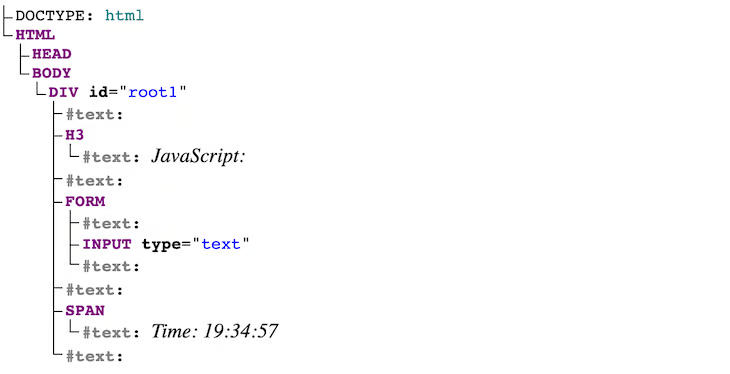

You can find the complete code on CodeSandbox. The DOM tree representing the document looks like the following:

Different JavaScript frameworks offer different solutions and strategies to optimize re-rendering. However, React implements the concept of the virtual DOM.

Exploring the React virtual DOM

As the name implies, the virtual DOM is a much lighter replica of the actual DOM in the form of objects. The virtual DOM can be saved in the browser memory and doesn’t directly change what is shown on the user’s browser. Implemented by several other frontend frameworks, like Vue, React’s declarative approach is unique.

How is the virtual DOM different from the real DOM?

A common misconception is that the virtual DOM is faster than or rivals the actual DOM, however, this is untrue. In fact, the virtual DOM’s operations support and add on to those of the actual DOM. Essentially, the virtual DOM provides a mechanism that allows the actual DOM to compute minimal DOM operations when re-rendering the UI.

For example, when an element in the real DOM is changed, the DOM will re-render the element and all of its children. When it comes to building complex web applications with a lot of interactivity and state changes, this approach is slow and inefficient.

Instead, in the rendering process, React employs the concept of the virtual DOM, which conforms with its declarative approach. Therefore, we can specify what state we want the UI to be in, after which React makes it happen.

After the virtual DOM is updated, React compares it to a snapshot of the virtual DOM taken just before the update, determines what element was changed, and then updates only that element on the real DOM. This is one method the virtual DOM employs to optimize performance. We’ll go into more detail later.

The virtual DOM abstracts manual DOM manipulations away from the developer, helping us to write more predictable and unruffled code so that we can focus on creating components.

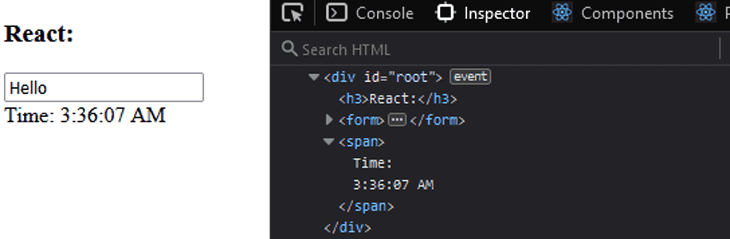

Thanks to the virtual DOM, you don’t have to worry about state transitions. Once you update the state, React ensures that the DOM matches that state. For instance, in our last example, React ensures that on every re-render, only Time gets updated in the actual DOM. Therefore, we won’t lose the value of the input field while the UI update happens.

The virtual DOM object

Let’s consider the following render code representing the React version of our previous JavaScript example:

// ...
const update = () => {
 const element = (
  <>
   <h3>React:</h3>
   <form>
    <input type="text" />
   </form>
   <span>Time: {new Date().toLocaleTimeString()}</span>
  </>
 );
 root.render(element);
};

For brevity, we have removed some of the code. You can see the complete code on CodeSandbox. We can also write JSX code in plain React, as follows:

const element = React.createElement(
 React.Fragment,
 null,
 React.createElement("h3", null, "React:"),
 React.createElement(
  "form",
  null,
  React.createElement("input", {
   type: "text"
  })
 ),
 React.createElement("span", null, "Time: ", new Date().toLocaleTimeString())
);

Keep in mind that you can get the React equivalent of JSX code by pasting the JSX elements in a Babel REPL editor.

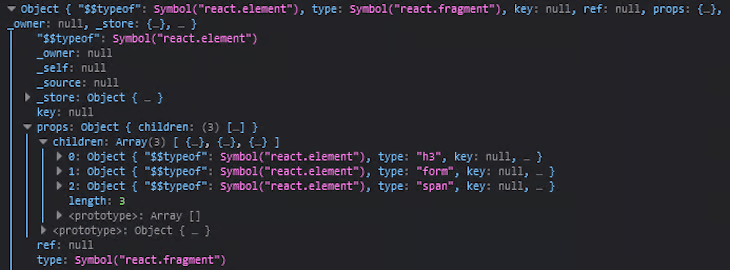

Now, if we log the React element in the console, we’ll end up with something like in the following image:

const element = (
  <>
   <h3>React:</h3>
   <form>
    <input type="text" />
   </form>
   <span>Time: {new Date().toLocaleTimeString()}</span>
  </>
 );
 console.log(element)

How React implements the virtual DOM

To understand the virtual DOM strategy, we need to understand the two major phases that are involved, rendering and reconciliation.

When we render an application user interface, React creates a virtual DOM tree representing that UI and stores it in memory. On the next update, or in other words, when the data that renders the app changes, React will automatically create a new virtual DOM tree for the update.

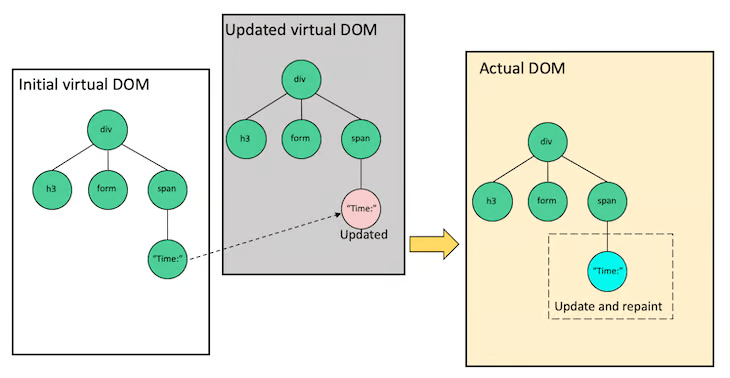

To further explain this, we can visually represent the virtual DOM as follows:

Remember, the virtual DOM is just an object representing the UI, so nothing gets drawn on the screen.

After React creates the new virtual DOM tree, it compares it to the previous snapshot using a diffing algorithm called reconciliation to figure out what changes are necessary.

After the reconciliation process, React uses a renderer library like ReactDOM, which takes the differ information to update the rendered app. This library ensures that the actual DOM only receives and repaints the updated node or nodes:

In summary, on every render, React compares the virtual DOM tree with the previous version to determine which node gets updated, ensuring that the updated node matches up with the actual DOM.

The React diffing process

When React diffs two virtual DOM trees, it begins by comparing whether or not both snapshots have the same root element. If they have the same elements, like in our case, where the updated nodes are of the same span element type, React moves on and recurses on the attributes.

In both snapshots, no attribute is present or updated on the span element. React then repeats the procedure on the children. Upon seeing that the Time text node has changed, React will only update the actual node in the real DOM.

On the other hand, if both snapshots have different element types, which is rare in most updates, React will destroy the old DOM nodes and build a new one. For instance, going from span to div, as shown in the respective code snippets below:

<span>Time: 04:36:35</span>

<div>Time: 04:36:38</div>

In the following example, we render a simple React component that updates the component state after a button click:

import { useState } from "react";

const App = () => {
 const [open, setOpen] = useState(false);

 return (
  <div className="App">
   <button onClick={() => setOpen((prev) => !prev)}>toggle</button>
   <div className={open ? "open" : "close"}>
    I'm {open ? "opened" : "closed"}
   </div>
  </div>
 );
};
export default App;

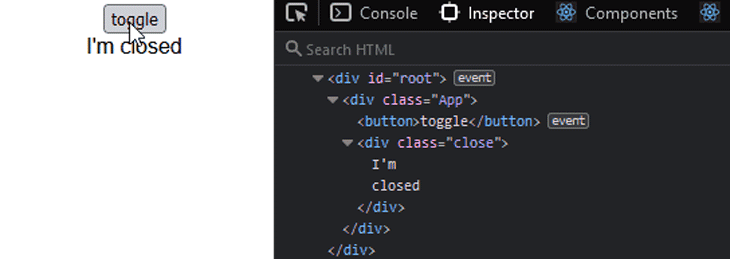

Updating the component state re-renders the component. However, as shown below, on every re-render, React knows only to update the class name and the text that changed. This update will not hurt unaffected elements in the render:

How React diffs lists

When we modify a list of items, how React diffs the list depends on whether the items are added at the beginning or the end of the list. Consider the following list:

<ul>
  <li>item 3</li>
  <li>item 4</li>
  <li>item 5</li>
</ul>

On the next update, let’s append an item 6 at the end, like so:

<ul>
  <li>item 3</li>
  <li>item 4</li>
  <li>item 5</li>
  <li>item 6</li>
</ul>

React compares the items from the top. It matches the first, second, and third items, and knows only to insert the last item. This computation is straightforward for React.

However, let’s insert item 2 at the beginning, as follows:

<ul>
  <li>item 2</li>
  <li>item 3</li>
  <li>item 4</li>
  <li>item 5</li>
</ul>

Similarly, React compares from the top, and immediately realizes that item 3 doesn’t match item 2 of the updated tree. It therefore sees the list as an entirely new one that needs to be rebuilt.

Instead of rebuilding the entire list, we want the DOM to compute minimal operations by only prepending item 2. React lets us add a key prop to uniquely identify the items as follows:

<ul>
  <li key="3">item 3</li>
  <li key="4">item 4</li>
  <li key="5">item 5</li>
</ul>

<ul>
  <li key="2">item 2</li>
  <li key="3">item 3</li>
  <li key="4">item 4</li>
  <li key="5">item 5</li>
  <li key="6">item 6</li>
</ul>

With the implementation above, React would know that we have prepended item 2 and appended item 6. As a result, it would work to preserve the items that are already available and add only the new items in the DOM.

If we omit the key prop whenever we map to render a list of items, React is kind enough to alert us in the browser console.

How is the virtual DOM different from the shadow DOM?

Before we wrap up, here’s a question that often comes up. Is the shadow DOM the same as the virtual DOM? The short answer is that their behavior is different.

The shadow DOM is a tool for implementing web components. Take, for instance, the HTML input element range:

<input type="range" />

This gives us the following result:

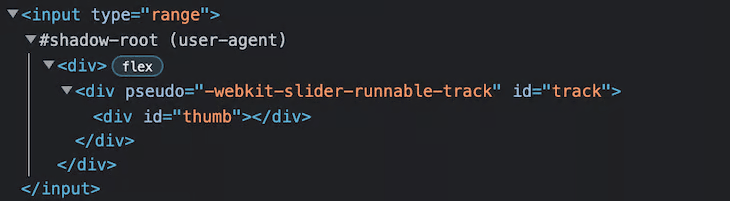

Using Chrome DevTools, we can enable the Show user agent shadow DOM option from Settings to see the shadow DOM:

Therefore, we’re sure that a widget or component’s style, like the input range above, is preserved no matter where it is rendered. In other words, their behavior or appearance is never affected by other elements’ styles from the real DOM.

Conclusion

React uses the virtual DOM as a strategy to compute minimal DOM operations when re-rendering the UI. It is not in rivalry with or faster than the real DOM.

The virtual DOM provides a mechanism that abstracts manual DOM manipulations away from the developer, helping us to write more predictable code. It does so by comparing two render trees to determine exactly what has changed, only updating what is necessary on the actual DOM.

Like React, Vue also employs this strategy. However, Svelte proposes another approach to ensure that an application is optimized, compiling all components into independent, tiny JavaScript modules, making the script very light and fast to run.

I hope you enjoyed reading this article. Be sure to share your thoughts in the comment section if you have questions or contributions.
